Surya is a visual inspection tool created by ConsenSys Diligence. It is written in JavaScript and provides security-oriented contract visualization tools. Its most popular features are the control flow graphs, function call tracing, describe tool that provides a report of all modifiers on each function and inheritance graphs.

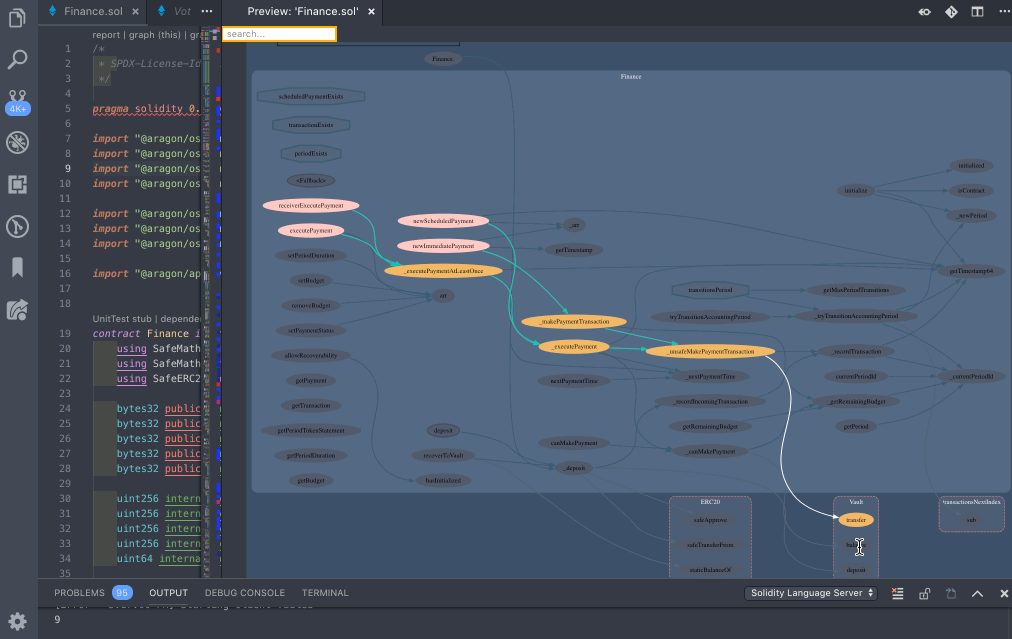

Surya in Solidity Visual Developer (source: Surya GitHub)
### How to use Surya (Mac)
Surya can directly be used from the console. In order to use its visualization capabilities, you will also have to download graphviz.
-- CODE language-bash --
# Install graphviz (Homebrew), this can take 5-10 minutes
brew install graphviz
# Install surya
npm install -g surya
# Create a graph of control flow
surya graph contracts/**/*.sol | dot -Tpng > MyContract.png
# Run tracing
surya ftrace APMRegistry::_newRepo all MyContract.sol
# Generate an inheritance graph
surya inheritance MyContract.sol | dot -Tpng > MyContract.png
# Create a markdown report of all modifiers
surya mdreport report_outfile.md MyContract.sol
# ...alternatively, describe can be run directly
surya describe *.sol
For more precise instructions and previews of outputs, please refer to the [GitHub repository](https://github.com/ConsenSys/surya).
